AP-72WUDF-12S

Technical Specifications

Output Specifications
Output Voltage: 12V DC
Output Voltage Range: 12V DC+_ 0.3VDC
Output Current: Max 6A
Output Power: Max 72W
Output Power Range: 0-72W
Dimming Range: 0~100%
Dimming Depth: Max 0.1%
Ripple & Noise: <150mV
PWM Frequency: 4-16Khz

Input Specifications
DIM/CCT Interface: DALI-2 / DT8 / 0-10V / 1-10V / 10V PWM / Resistance Dim (0-100K)
Input Voltage: 100-264VAC
Frequency: 60/60Hz
Input Current: 0.72~0.26A
Power Factor: PF> 0.96/230VAC, At full load
THD: <10% at 230VAC, At full load
Efficiency: 89%
Inrush Current: Cold Start 50A at 230V
Control Surge Capability: L-NL 1KV
Leakage Current: Max. 0.5mA

Environment Specifications
Working Temperature: -25 ~ +50 Degrees Celsius
Working Humidity: 20 ~ 95%, Non Condensing
Storage Temperature: -40 ~ +80 Degrees Celsius
Vibration: 10-500Hz, 2G 12min

Protection Specifications
Over Temperature Protection: Yes, Shutdown, Repower to recover
Over Voltage Protection: Yes Automatically restore on fix
Short Circuit Protection: Yes

Safety & EMC Specifications
Withstand Voltage: I/P-O/P: 3750VAC
Isolation Resistance: I/P-O/P: 100M OHMS / 500VDC / 25 Degrees Celsius / 70% RH
Safety Standards: IEC/EN61347-1, IEC/EN61347-2-13
EMC Emission: EN55015, EN61000-3-2 Class C, IEC61000-3-3
EMC Immunity: EN6100-4-2,3,4,5,6,8,11, EN61547
Strobe Test Std: IEEE 1789

Wiring Diagram

Note: The two single channel output wires can be joined together, this allows for the full output on one wire, it will still require two DALI channels to control it.

Push Dim Usage - Two switches should be connected as the above diagram, this allows users to operate the device on a very simple level using button switches.
- On / Off: Short Press.
- Stepless Dimming: Long Press (with every other long press, Dimming function will swap direction).
- Dimming Memory: Recalled when light is turned on.

Push CCT Usage - Works in conjunction with the Push Dim to control the CCT, this should be wired in as a separate switch.
- Switch Colour Temperature: Short Press 4 pre-sets.
- Stepless CCT: Long Press (with every other long press, CCT function will swap direction).
- Colour Memory: Recalled when light is turned on.

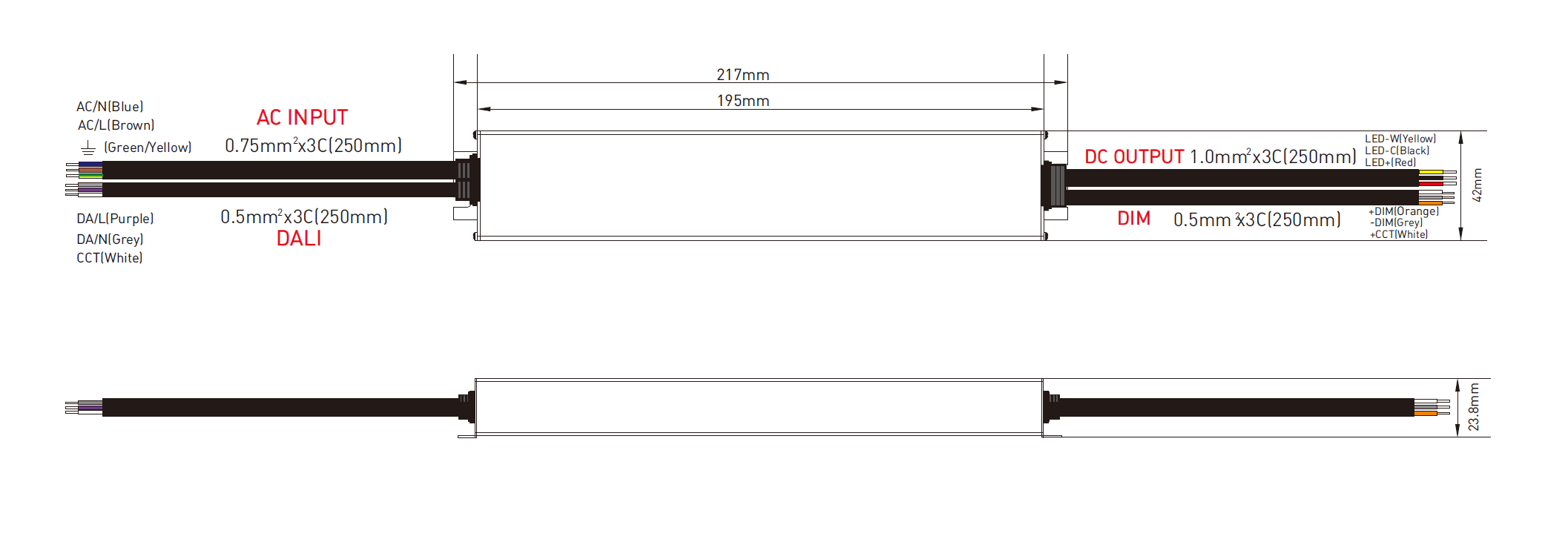

Dimensions

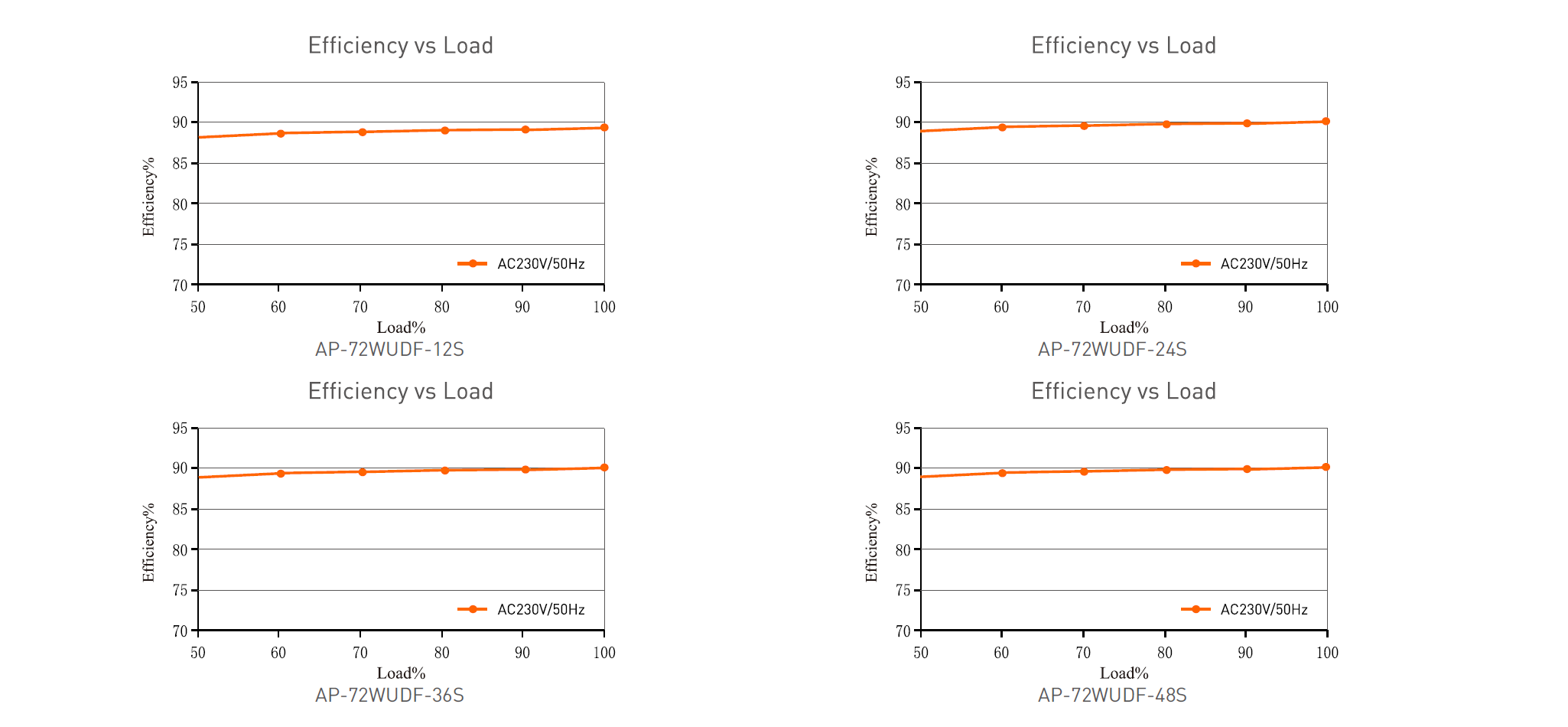

Relationship Diagrams

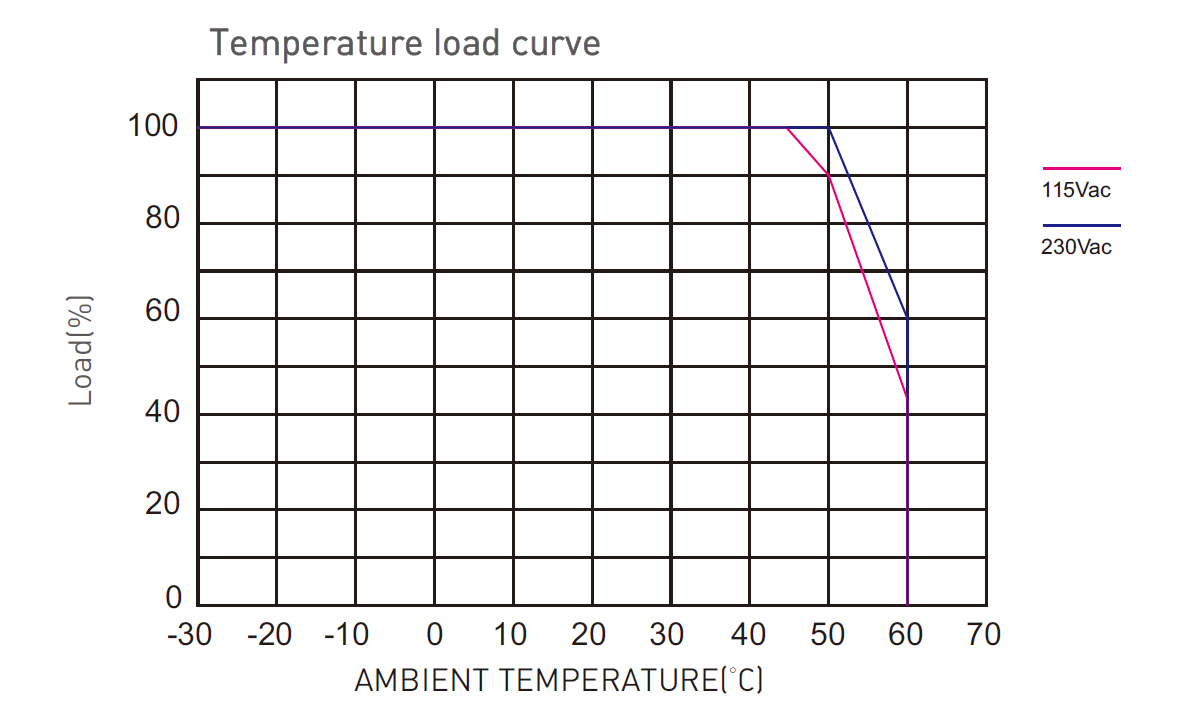

Temperature Load Curve

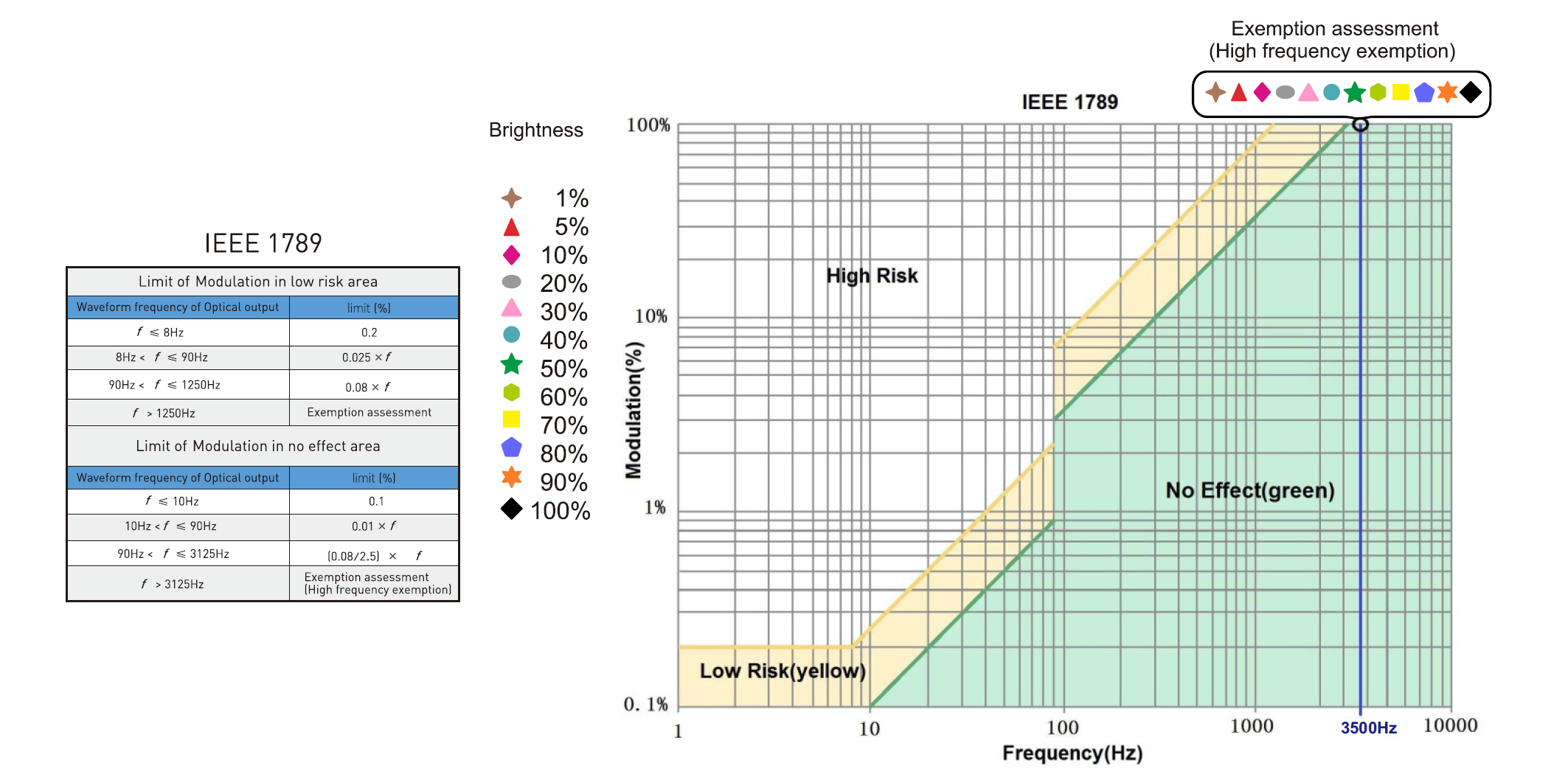

Flicker Test Form



Packing & Shipping Information

Dimensions: 217 x 42 x 23.8mm
Packing: 275 x 67 x 33mm
Carton Quantity: 25PCS
Carton Size: 350 x 290 x 180mm
Weight: 440G ~ PC
