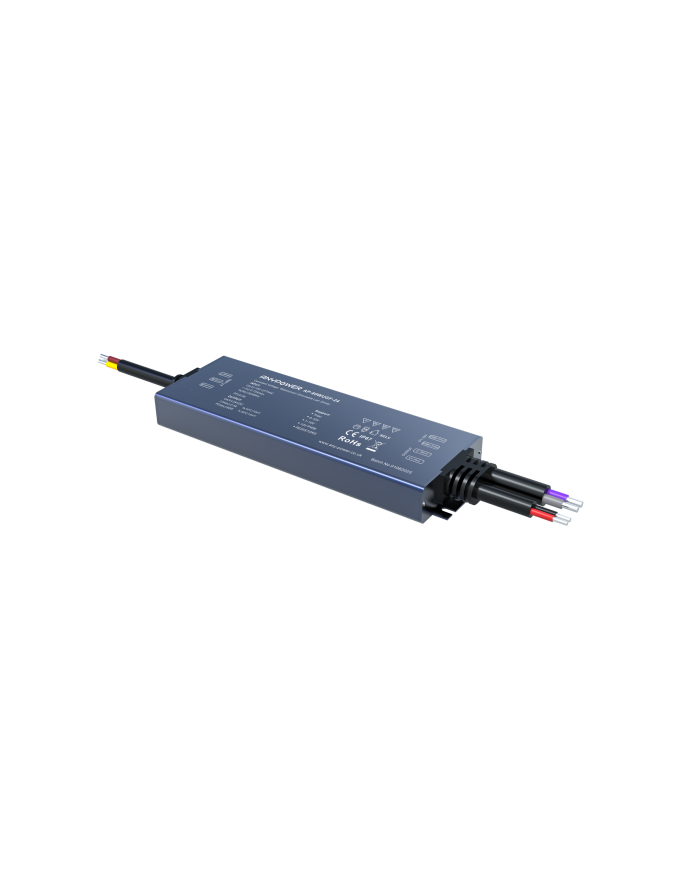

AP-60WUGF-24

Technical Specifications

Output Specifications
IP Rating: IP67
Output Voltage: 24V DC
Output Voltage Range: 24V DC± 0.6VDC
Output Current: Max 2.5A
Output Power: Max 60W
Output Power Range: 0-60W
Dimming Range: 0~100%
Dimming Depth: Max. 1%
Ripple & Noise: ≤400mV
PWM Frequency: 3500Hz

Input Specifications
Dimming Interface: TRIAC, 0-10V, 1-10V, 10V PWM, Resistance Dimmer
Input Voltage: 100-277VAC
Frequency: 50/60Hz
Input Current: 0.72A-0.26A 230VAC
Power Factor: PF> 0.96/230VAC
THD: ≤10% at 230VAC, At full load
Efficiency: 89%
Inrush Current: Cold Start 30A at 230V
Control Surge Capability: L,N:2KV
Leakage Current: Max. 0.5mA

Environment Specifications
Working Temperature: -25 ~ +50 Degrees Celsius
Working Humidity: 20 ~ 95%, Non Condensing
Storage Temperature: -40 ~ +80 Degrees Celsius
Vibration: 10-500Hz, 2G 12min

Protection Specifications
Over Temperature Protection: Yes, Shutdown, Repower to recover
Over Voltage Protection: Yes, Shutdown, Repower to recover
Over Load Protection: Yes, Shutdown, Auto recover
Short Circuit Protection: Yes, Shutdown, Auto Recover

Safety & EMC Specifications
Withstand Voltage: I/P-O/P: 3750VAC
Isolation Resistance: I/P-O/P: 100M OHMS / 500VDC / 25 Degrees Celsius / 70% RH
Safety Standards: IEC/EN61347-1, IEC/EN61347-2-13, IP67
EMC Emission: EN55015, EN61000-3-2 Class C, EN61000-3-3
EMC Immunity: EN6100-4-2,3,4,5,6,8,11, EN61547
Strobe Test Standard: IEEE 1789
