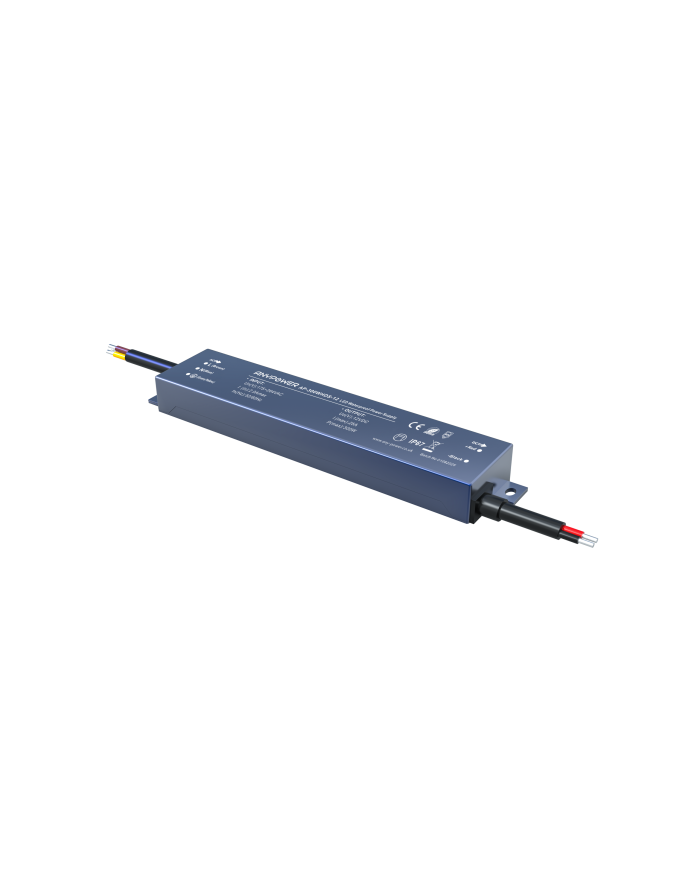

AP-300WHDS-12

Technical Specifications

Output Specifications
IP Rating: IP67
Output Voltage: 12V DC
Output Voltage Range: 12V DC± 0.3VDC
Output Current: Max 25A
Output Power: Max 300W
Output Power Range: 0-300W
Ripple & Noise: ≤400mV
Linear Regulation: ±1%
Load Regulation: ±1%
Start Up Time: 300ms/230VAC
Rise Time: 11ms/230VAC
Hold Up Time: 19ms/230VAC

Input Specifications
Input Voltage: 170-264VAC
Frequency: 50/60Hz
Input Current: 1.5A 230VAC
Power Factor: PF> 0.96/230VAC
No Load Power Consumption: < 0.6W
THD: ≤10% at 230VAC, At full load; ≤8% at 115VAC, At full load
Efficiency: 93%
Inrush Current: Cold Start 70A at 230V
Control Surge Capability: L,N:2KV L,N-PE:4KV
Leakage Current: Max. 0.5mA

Environment Specifications
Working Temperature: -25 ~ +50 Degrees Celsius
Working Humidity: 20 ~ 95%, Non Condensing
Storage Temperature: -40 ~ +80 Degrees Celsius
Vibration: 10-500Hz, 2G 12min

Protection Specifications
Over Temperature Protection: Yes, Shutdown, Repower to recover
Over Voltage Protection: Yes, Shutdown, Repower to recover
Over Load Protection: Yes, Shutdown, Auto recover
Short Circuit Protection: Yes, Shutdown, Auto Recover

Safety & EMC Specifications
Withstand Voltage: I/P-O/P: 3750VAC
Isolation Resistance: I/P-O/P: 100M OHMS / 500VDC / 25 Degrees Celsius / 70% RH
Safety Standards: IEC/EN61347, IEC/EN60950, IP67
EMC Emission: EN55015:2013, FCC Part 15B, EN61547:2009, EN61000-3-2:2014, EN61000-3-3:2013
EMC Immunity: EN6100-4-2,3,4,5,6,8,11, EN61547
