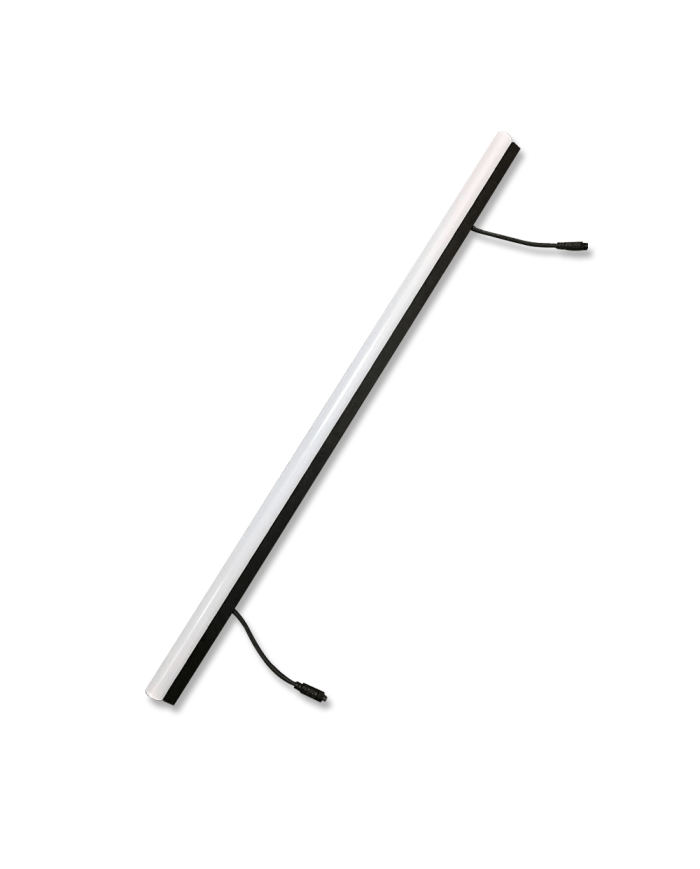

PixNet Pixel Bar 300mm RGB

(Product code: PNPBar300RGB)

The PixNet 300mm RGB LED Pixel Bar is a compact, high-performance pixel-mapped lighting fixture designed for stage lighting, architectural installations, media facades, and creative lighting displays.

Featuring 19 individually addressable RGB pixels, this LED pixel bar delivers vibrant colour effects, smooth dimming, and dynamic lighting animations when controlled via DMX, Art-Net, or sACN pixel mapping systems.

Its slim 18mm aluminium housing allows clean installation in lighting structures, stage designs, and architectural installations, while the IP65 waterproof rating ensures reliable operation both indoors and outdoors.

The PixNet Pixel Bar is available with interchangeable diffuser covers, allowing lighting designers to customise the appearance and diffusion of the fixture depending on the application.

Key Features

• 19 individually addressable RGB pixels

• High brightness 5050 RGB LEDs

• Smooth dimming with 256 greyscale levels

• Pixel mapping compatible

• Slim architectural aluminium housing

• IP65 weatherproof rating

Specifications

LED Quantity: 19
Pixel Quantity: 19
Input Voltage: 24V DC
Max Power: 5W
Greyscale: 256
LED Type: 5050 RGB
Dimensions: 300 × 18 × 18 mm
Protection Rating: IP65

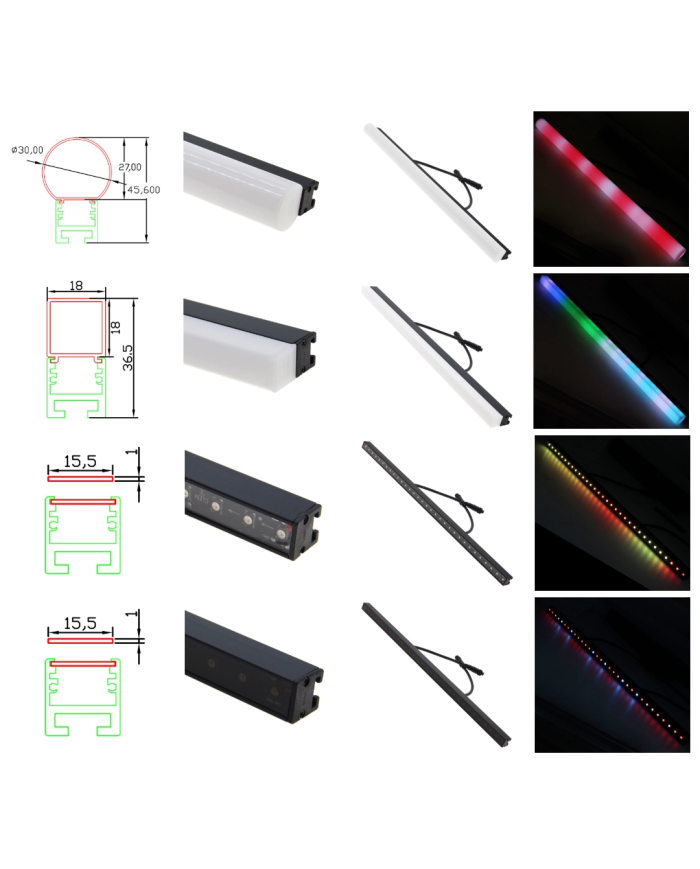

Lens Cover Options

PixNet Pixel Bars are available with interchangeable lens cover options, allowing you to customise the appearance and light diffusion of the fixture to suit your installation.

Different covers can change how the LEDs appear visually, from sharp pixel effects to soft blended lighting, making the bars suitable for both pixel mapping displays and architectural lighting designs.

Available Lens Options

Flat Cover
Provides a clean, low-profile appearance with a defined pixel look. Ideal for media facades, pixel mapping installations, and structured lighting designs.

Round Cover
Creates a softer, more diffused light output with a wider viewing angle. This option is perfect for decorative lighting and installations where smoother colour blending is desired.

Square Cover
Offers a more architectural look with defined edges, making it ideal for structured lighting layouts and modern design installations.

All lens covers are fully interchangeable, allowing the lighting appearance to be easily adjusted depending on the project requirements.
