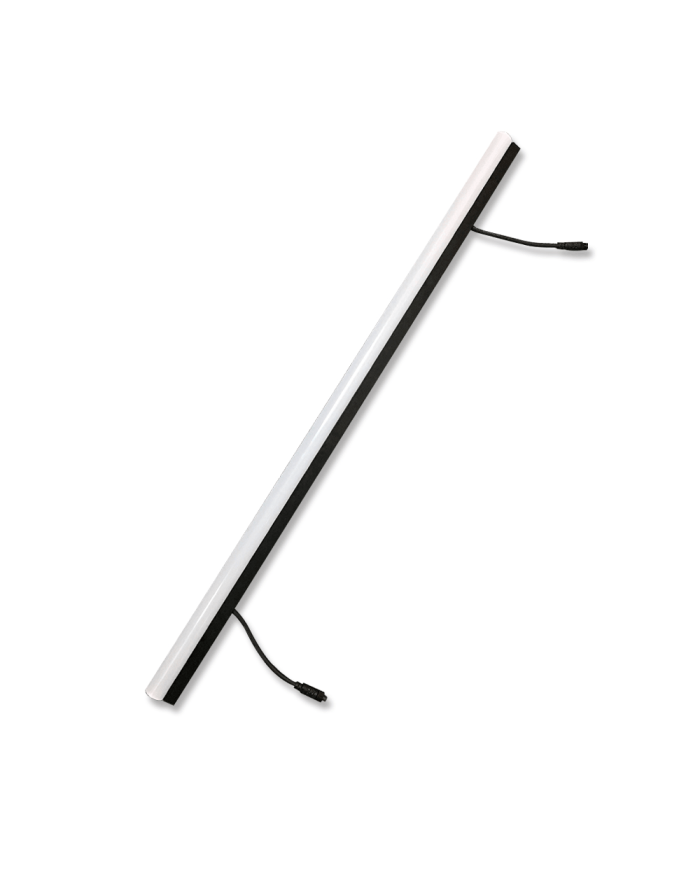

PixNet Pixel Bar 500mm RGB

(Product code: PNPBar500RGB)

The PixNet 500mm RGB LED Pixel Bar provides powerful linear pixel lighting for stage productions, architectural installations, and media lighting structures.

With 32 individually controllable pixels, the bar enables complex pixel-mapped effects including colour chases, gradients, waves, and animated lighting displays.

Designed for professional installations, the bar features a durable aluminium housing and IP65 protection, making it suitable for both indoor and outdoor lighting projects.

Key Features

• 32 individually addressable pixels

• High brightness 5050 RGB LEDs

• Compatible with DMX / Art-Net / sACN controllers

• Smooth colour mixing and animation

• Slim aluminium architectural design

• IP65 waterproof rating

Specifications

LED Quantity: 32
Pixel Quantity: 32
Input Voltage: 24V DC
Max Power: 7.5W
Greyscale: 256
LED Type: 5050 RGB
Dimensions: 500 × 18 × 18 mm
Protection Rating: IP65

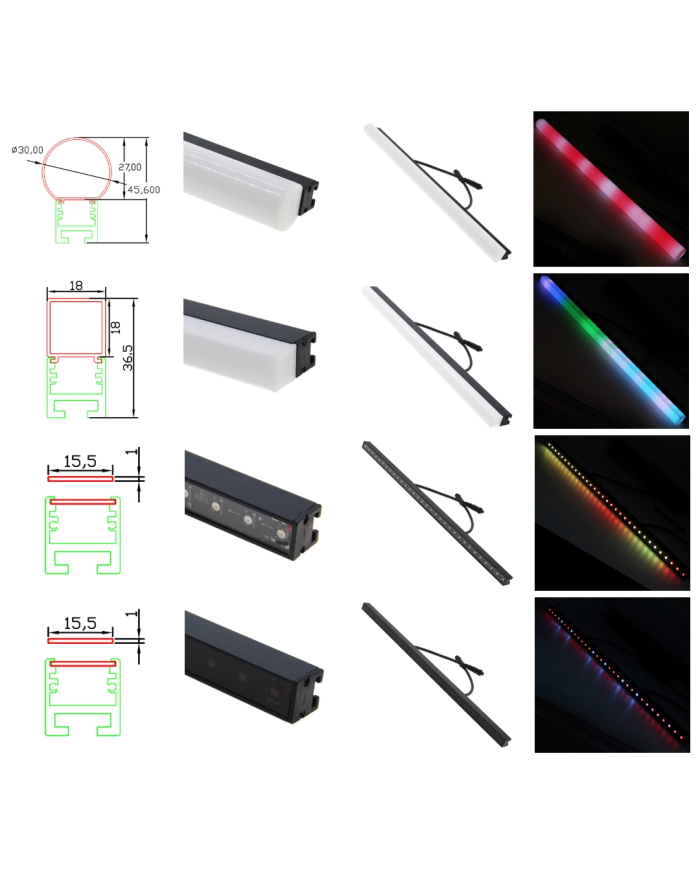

Lens Cover Options

PixNet Pixel Bars are available with interchangeable lens cover options, allowing you to customise the appearance and light diffusion of the fixture to suit your installation.

Different covers can change how the LEDs appear visually, from sharp pixel effects to soft blended lighting, making the bars suitable for both pixel mapping displays and architectural lighting designs.

Available Lens Options

Flat Cover
Provides a clean, low-profile appearance with a defined pixel look. Ideal for media facades, pixel mapping installations, and structured lighting designs.

Round Cover
Creates a softer, more diffused light output with a wider viewing angle. This option is perfect for decorative lighting and installations where smoother colour blending is desired.

Square Cover
Offers a more architectural look with defined edges, making it ideal for structured lighting layouts and modern design installations.

All lens covers are fully interchangeable, allowing the lighting appearance to be easily adjusted depending on the project requirements.
