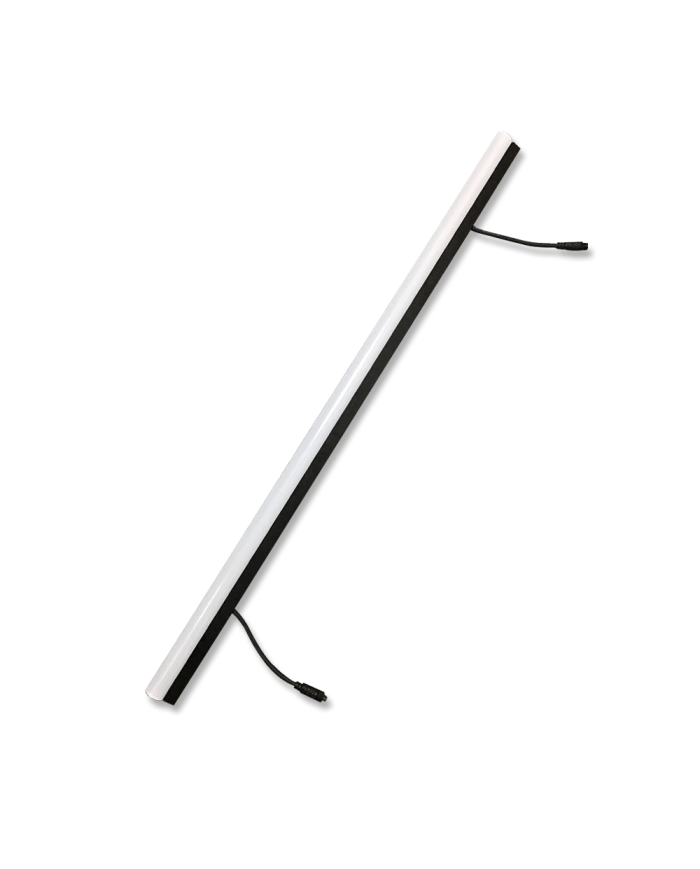

PixNet Pixel Bar 300mm RGBW

(Product code: PNPBar300RGBW)

The PixNet 300mm RGBW Pixel Bar adds a dedicated white LED channel to traditional RGB pixel lighting, allowing both vibrant colour effects and accurate white lighting.

This makes the fixture ideal for architectural lighting, stage productions, event installations, and media facades where both colour effects and white illumination are required.

White LED Options

• Warm White – 2800K

• Neutral White – 4000K

• Pure White – 6000K

Specifications

LED Quantity: 19
Pixel Quantity: 19
Input Voltage: 24V DC
Max Power: 7W
Greyscale: 256
LED Type: 5050 RGBW
Dimensions: 300 × 18 × 18 mm
Protection Rating: IP65

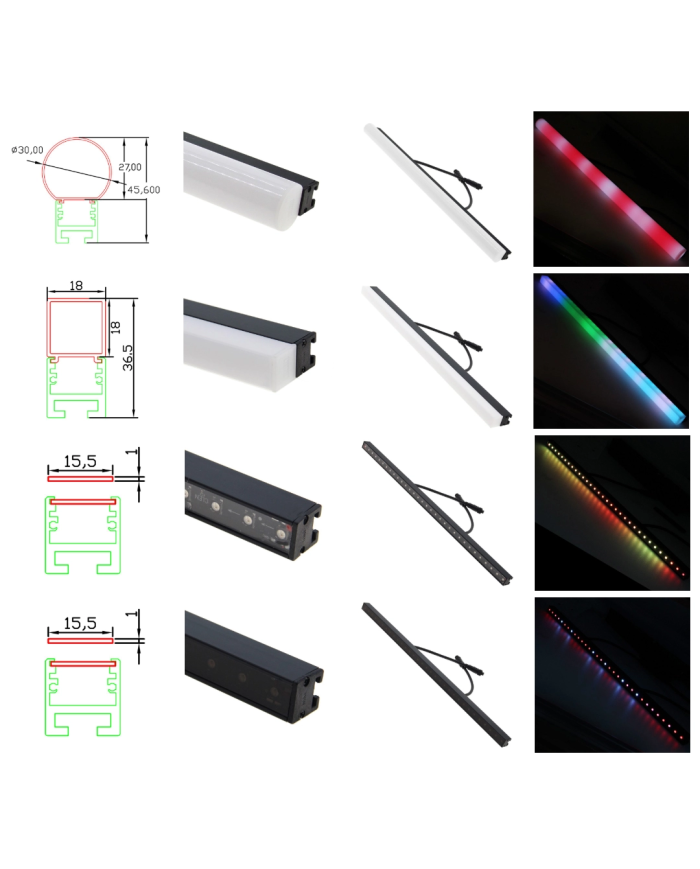

Lens Cover Options

PixNet Pixel Bars are available with interchangeable lens cover options, allowing you to customise the appearance and light diffusion of the fixture to suit your installation.

Different covers can change how the LEDs appear visually, from sharp pixel effects to soft blended lighting, making the bars suitable for both pixel mapping displays and architectural lighting designs.

Available Lens Options

Flat Cover
Provides a clean, low-profile appearance with a defined pixel look. Ideal for media facades, pixel mapping installations, and structured lighting designs.

Round Cover
Creates a softer, more diffused light output with a wider viewing angle. This option is perfect for decorative lighting and installations where smoother colour blending is desired.

Square Cover
Offers a more architectural look with defined edges, making it ideal for structured lighting layouts and modern design installations.

All lens covers are fully interchangeable, allowing the lighting appearance to be easily adjusted depending on the project requirements.
