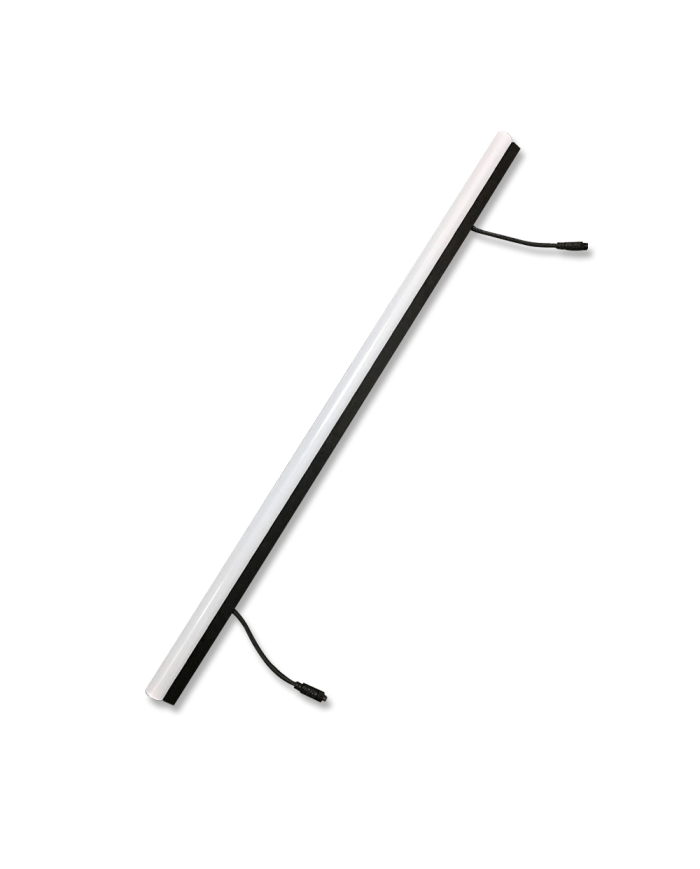

PixNet Pixel Bar 1000mm RGB

(Product code: PNPBar1000RGB)

The PixNet 1000mm RGB LED Pixel Bar is designed for large lighting installations requiring extended linear pixel lighting and high visual impact.

Featuring 64 individually addressable RGB pixels, the 1m pixel bar allows advanced lighting animations and large-scale pixel mapping across stage designs, LED structures, and architectural facades.

The slim aluminium housing combined with IP65 weather protection makes the fixture suitable for professional indoor and outdoor installations.

Key Features

• 64 individually addressable RGB pixels

• High brightness 5050 RGB LEDs

• Pixel mapping compatible

• Smooth 256 greyscale dimming

• IP65 rated for indoor and outdoor installations

• Slim architectural design

Specifications

LED Quantity: 64
Pixel Quantity: 64
Input Voltage: 24V DC
Max Power: 15W
Greyscale: 256
LED Type: 5050 RGB
Dimensions: 1000 × 18 × 18 mm
Protection Rating: IP65

Lens Cover Options

PixNet Pixel Bars are available with interchangeable lens cover options, allowing you to customise the appearance and light diffusion of the fixture to suit your installation.

Different covers can change how the LEDs appear visually, from sharp pixel effects to soft blended lighting, making the bars suitable for both pixel mapping displays and architectural lighting designs.

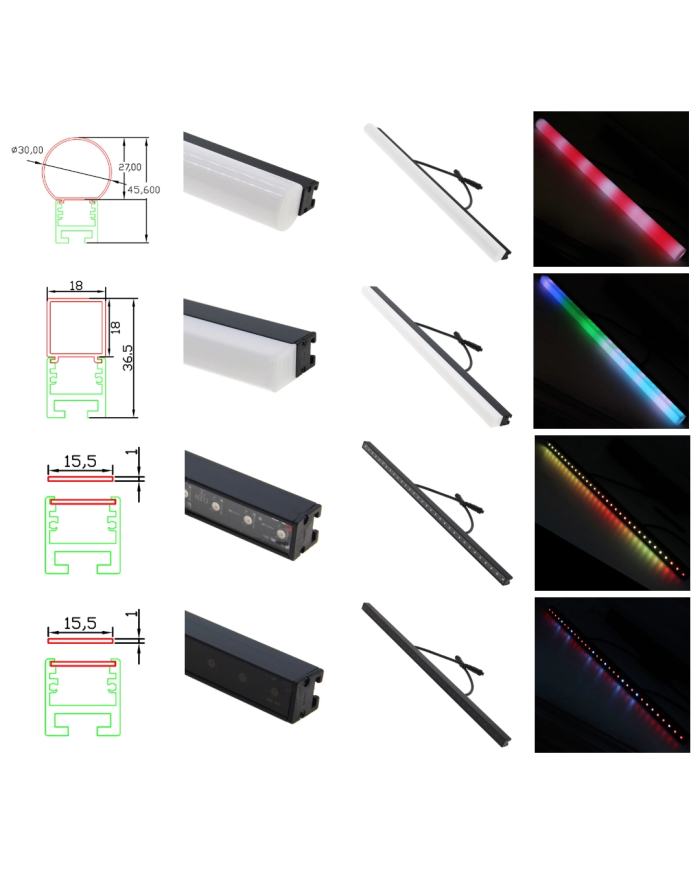

Available Lens Options

Flat Cover
Provides a clean, low-profile appearance with a defined pixel look. Ideal for media facades, pixel mapping installations, and structured lighting designs.

Round Cover
Creates a softer, more diffused light output with a wider viewing angle. This option is perfect for decorative lighting and installations where smoother colour blending is desired.

Square Cover
Offers a more architectural look with defined edges, making it ideal for structured lighting layouts and modern design installations.

All lens covers are fully interchangeable, allowing the lighting appearance to be easily adjusted depending on the project requirements.
